Shelf Pallet Rack Post Roll Forming Machine

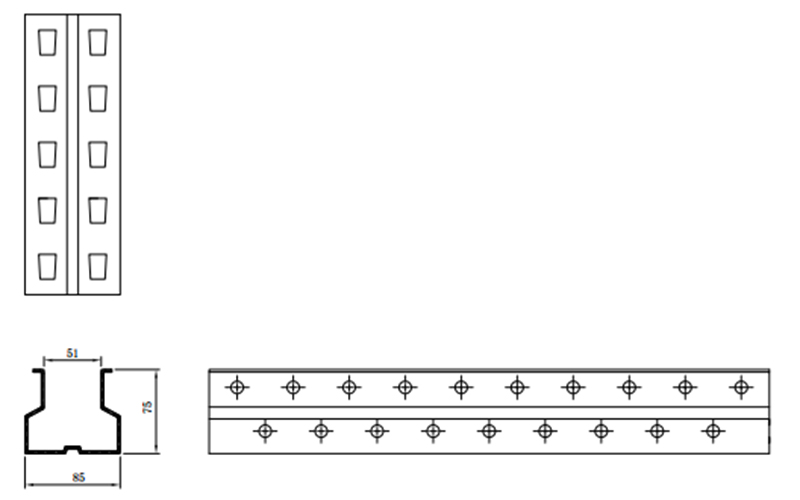

Profile

Material

Material Thickness: 2.0-3.0mm
Applicable Material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With Yield Strength:G340-550Mpa

Work Flow

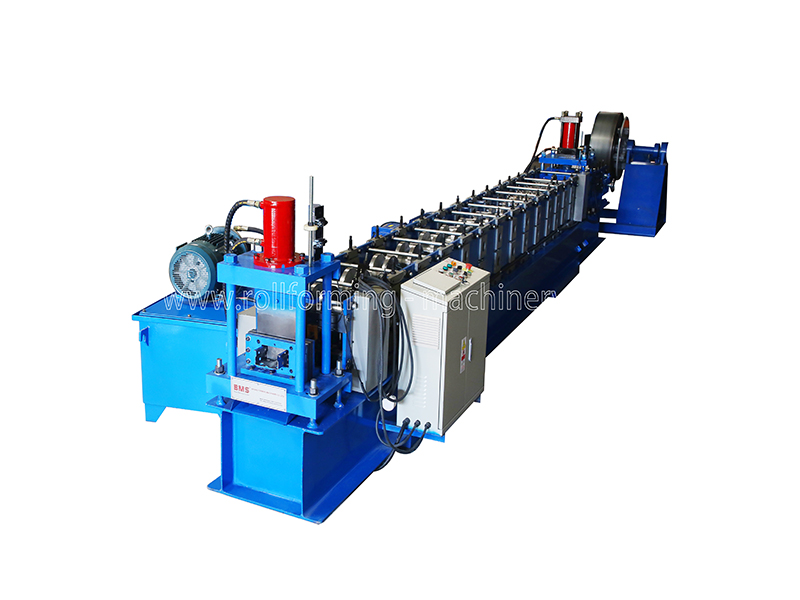

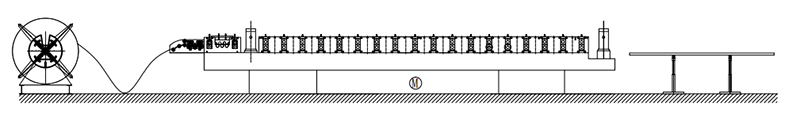

Decoiler→Guide Feeding & Leveling Device→Punching Device→Roll Forming System→Hydraulic Post Cutter →Exit Rack

Machine Components

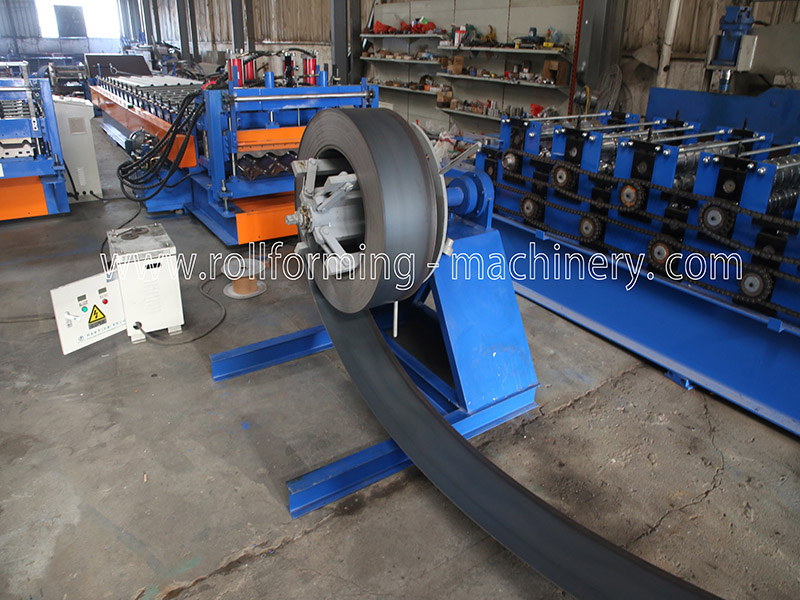

1) Manual Decoiler: one set

Manual control steel coil inner bore shrinkage and stop
Max. feeding width:500mm
Coil ID Range:508±30mm
Max capacity:5 ton

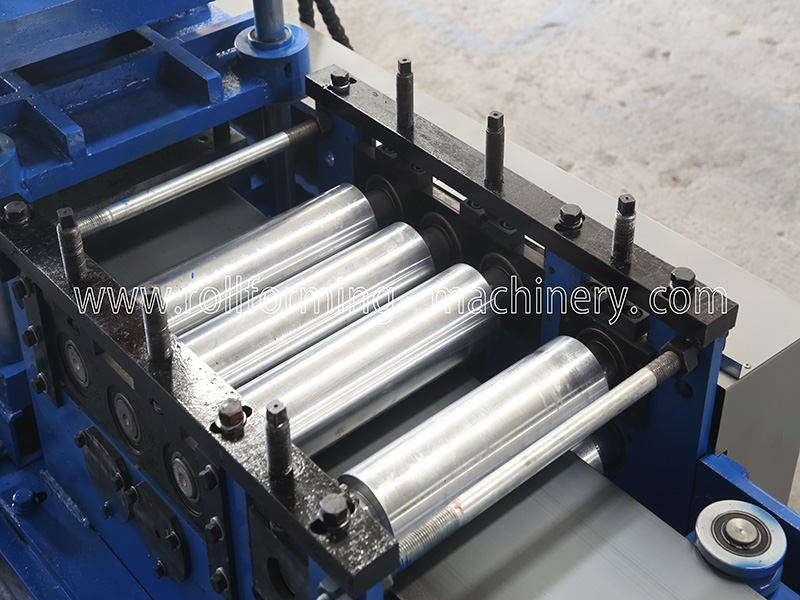

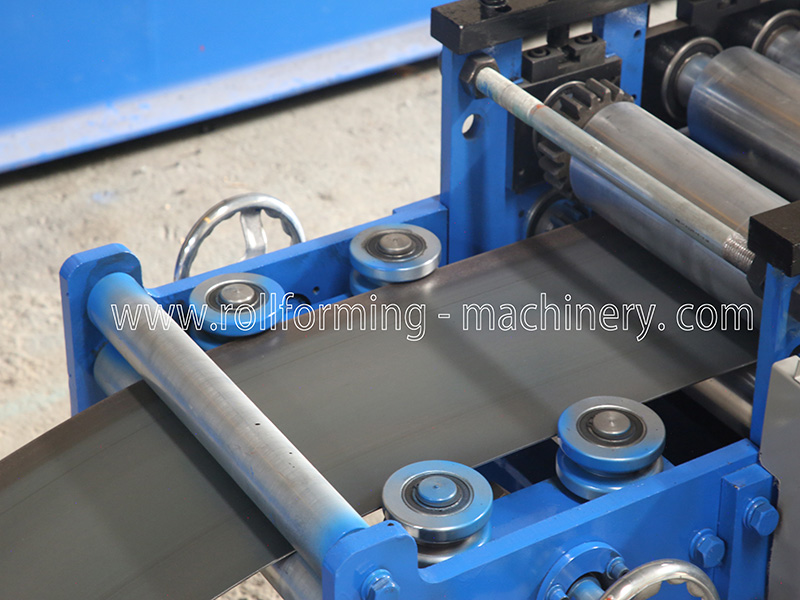

2) Feeding Guide & Leveling Device

Up three down two totally five shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Shafts manufactured from 45# steel,Diameter=φ95mm,Tone plated with hard chrome Coated,precision machined

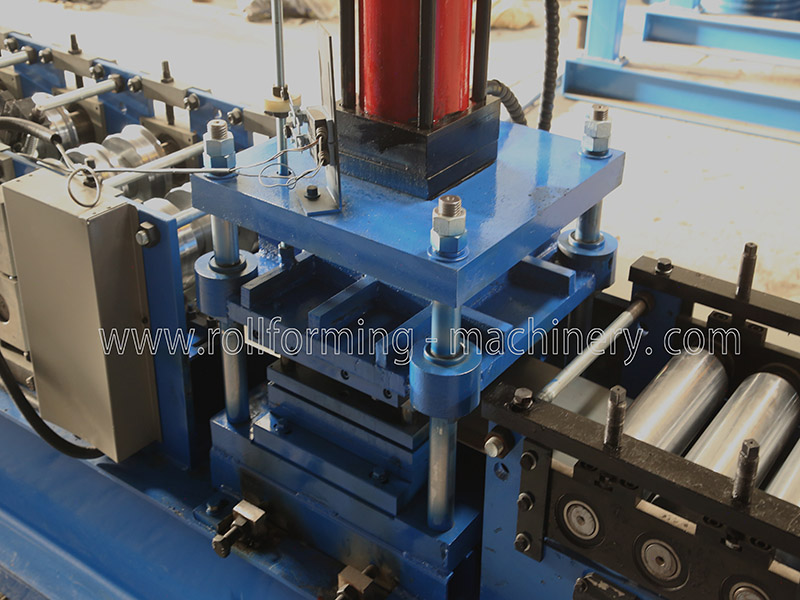

3) Punching Device

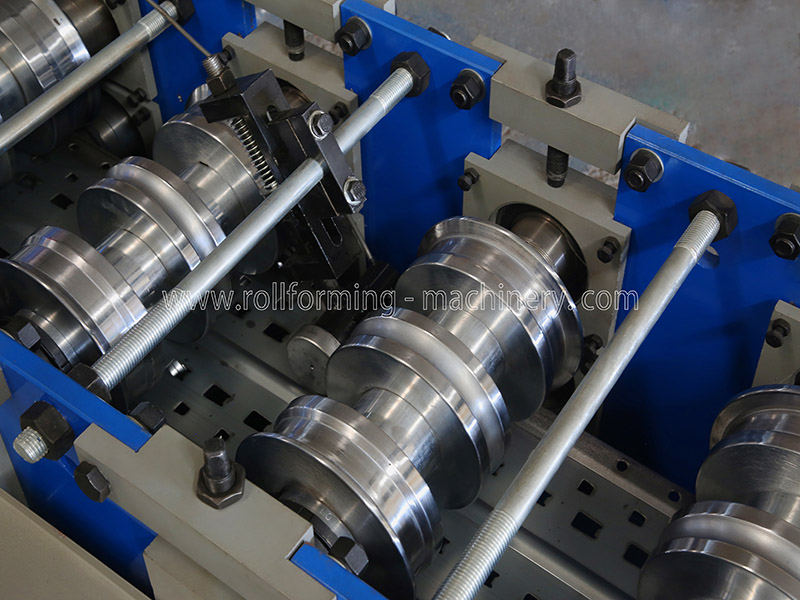

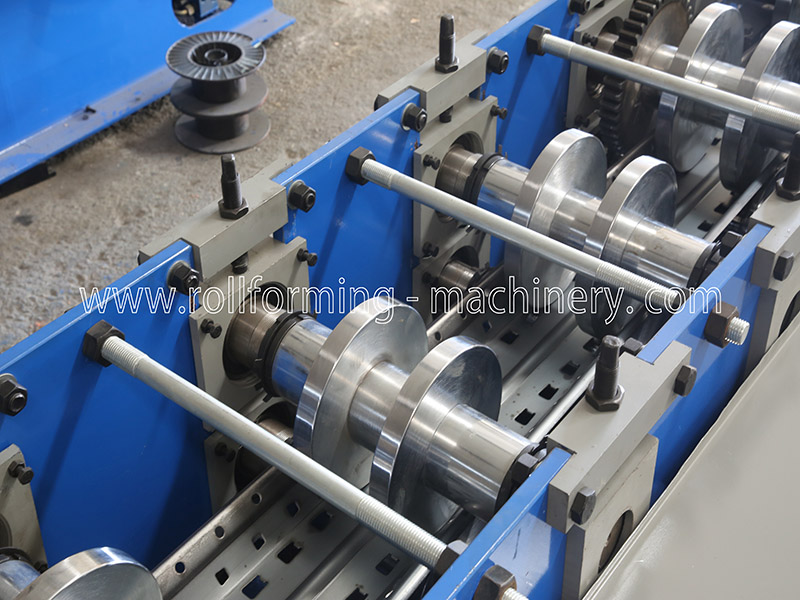

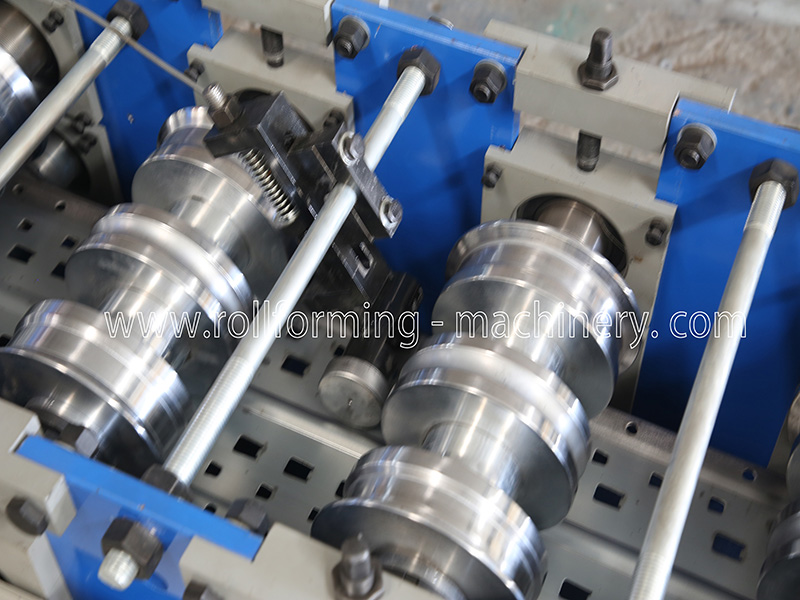

4) Main Machine

Body frame made from H450 type steel by welding.
Rollers manufactured from GCr15 Steel(=EN31),Heat Treatment,HRC58-62.
Shafts Diameter=ф80,precision machined.
Gear/Sprocket driving,about 18-step to form.
Main Motor=11KW, Frequency speed control.

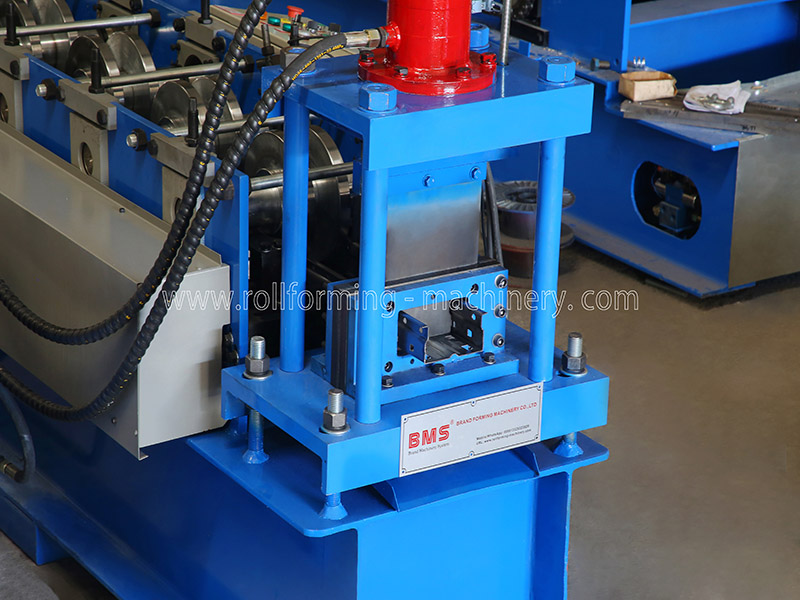

5) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor:11KW ;Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.

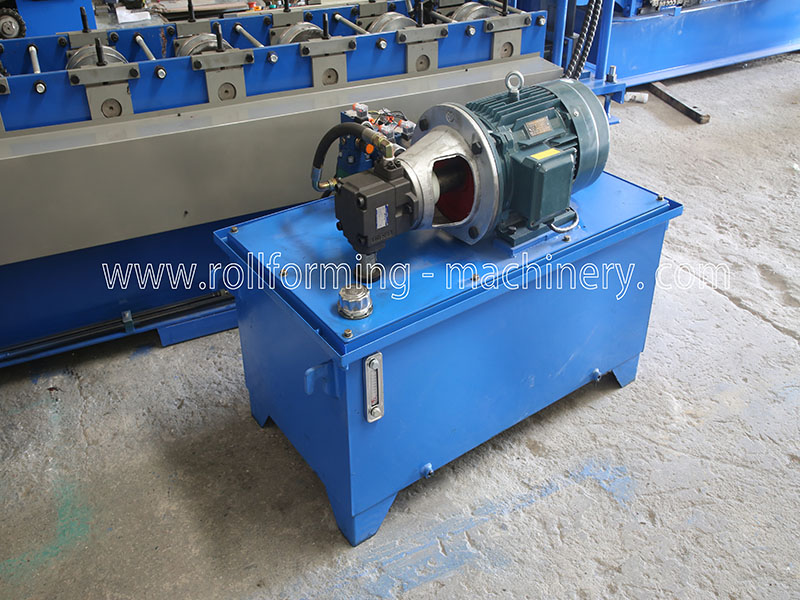

The cutting power is provided by the independent engine hydraulic station.

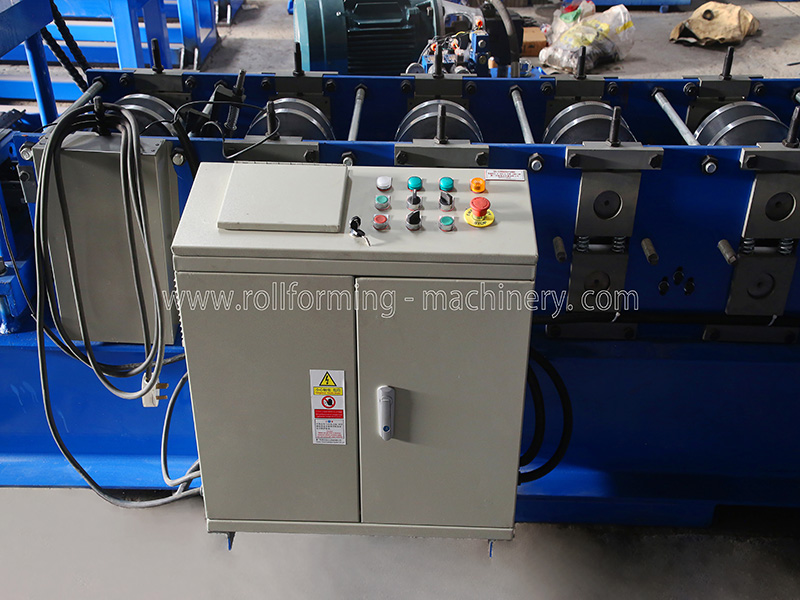

6) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

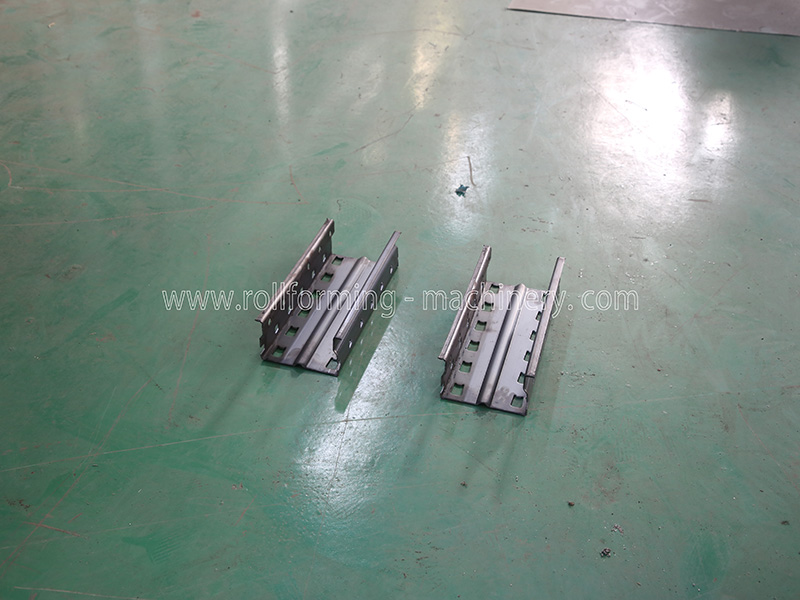

8)Product Show

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
