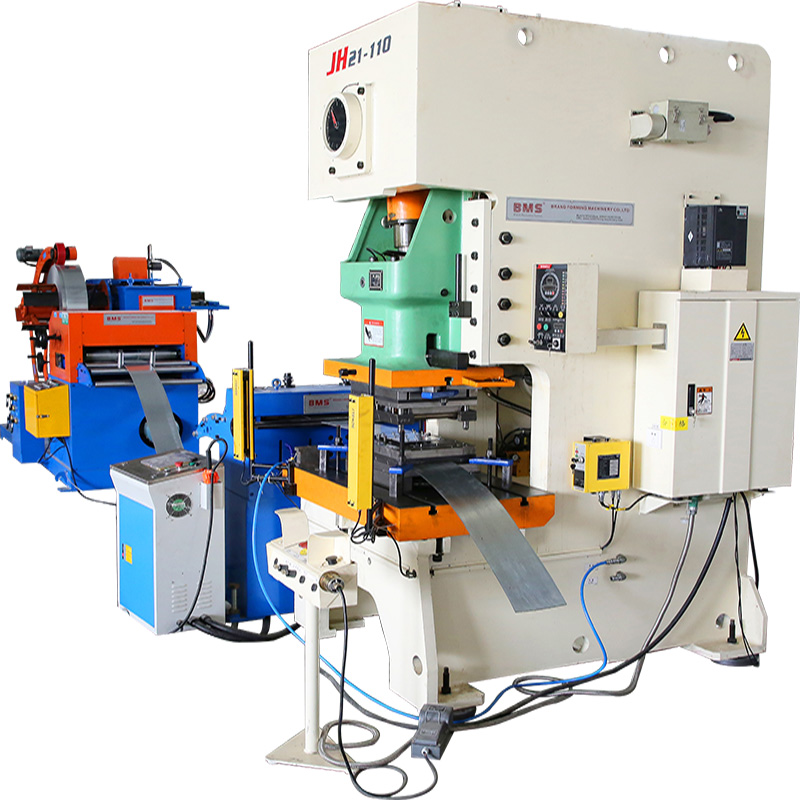

High Speed Punching Fastener Line

Work Flow

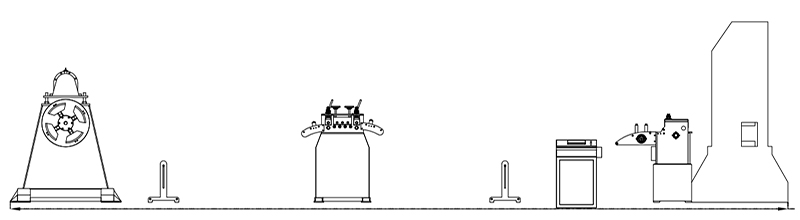

Hydraulic Decoiler→Leveling Device→Servo Feeding Device→High Speed Punching Machine

Machine Components

1) 5 T Hydraulic Decoiler:With Press Arm

Hydraulic System Expand Coil Inner Hole, Pump Motor:2.2KW
Hydraulic Valve:China Top Brand HUADE
Bearing:China Top Brand HRB
Chain: China Top Brand ZIQIANG
Frequency Inverter To Regulate Turning Speed, Motor:3KW
PLC Control System:
Inverter With Taiwan DELTA Brand
Contactor And Indication Lamp With Schneider Electric Brand
“Wedge Type Structure’’Expansion,Which Is Much Stronger And Has A Longer Service Life Than Normal “Pull-Rod Structure” Expansion Decoilers

Automatic Stopping Device,Load Capacity =Max.5 Tons
Coil Inner Diameter=508±30mm;Coil Width =Max.1600mm
All The Screw Bolts With Grade 8.8

2) Leveling Device

With Feeding Material Guide And Leveling Device
Up Three Down Four Totally Seven Shafts Leveling Device
Body Frame Made From H Steel By Welding
Side Wall Thickness:Q235 t25mm
Shafts Manufactured From GCr15 Steel(=EN31 Steel),Diameter=Ø105mm
High Frequency,Heat Treatment And Quenching And Tempering
With Air Device To Adjust Distance Between Upper And Lower Shafts
With Hand WheelTo Adjust The Feeding Width
Motor Power:3.0KW

3) Servo Feeding Device

With Feeding Guide Device

With Servo Motor For More Accurate Feeding,Servo Motor:3.0KW
Material Feed Tolerance:≤±0.5mm

4) 110 T High Speed Punching Machine

110 T HIGH SPEED Punching Machine Equip With Punching Model
Punching Machine With Safety Cover
Punching Speed:75 Times Per Minute,Punching Motor:11KW
Punching Model Manufactured From Cr12MoV Steel(=SKD11 Steel)
Heat Treatment To HRC58-62 Degree

With PLC Control System

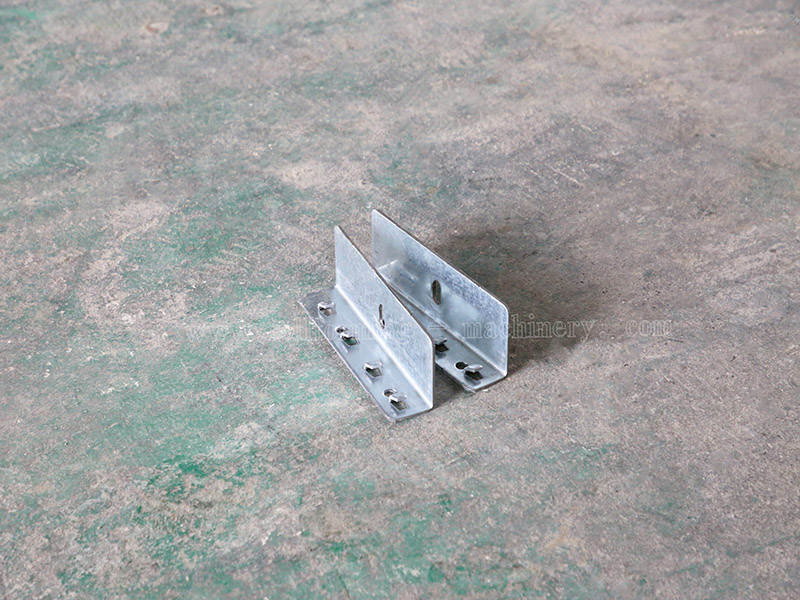

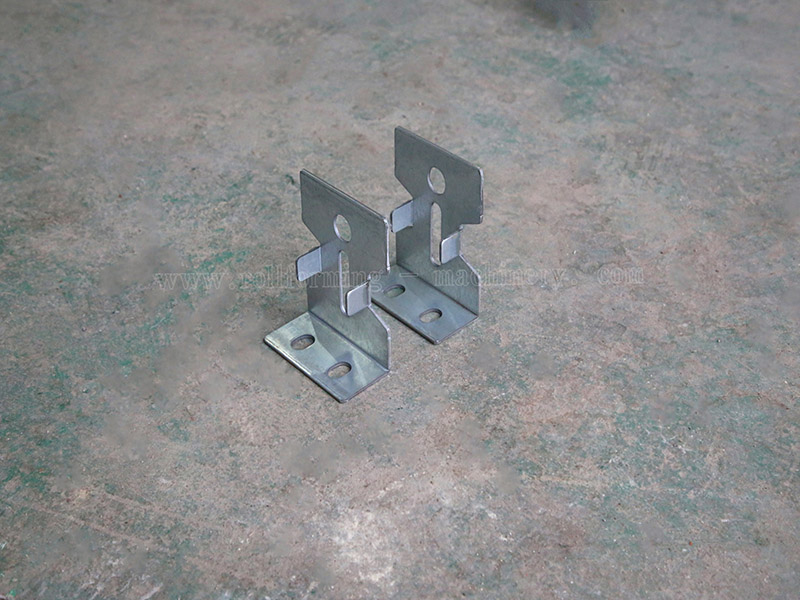

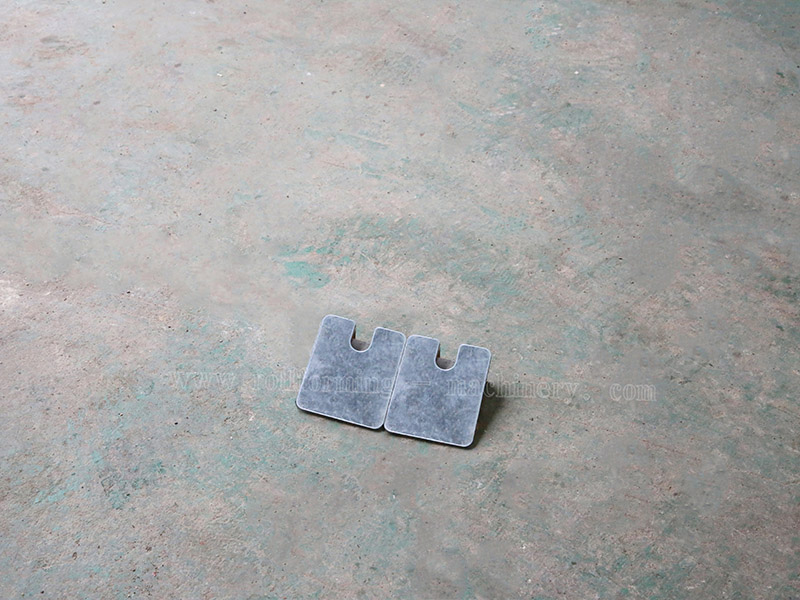

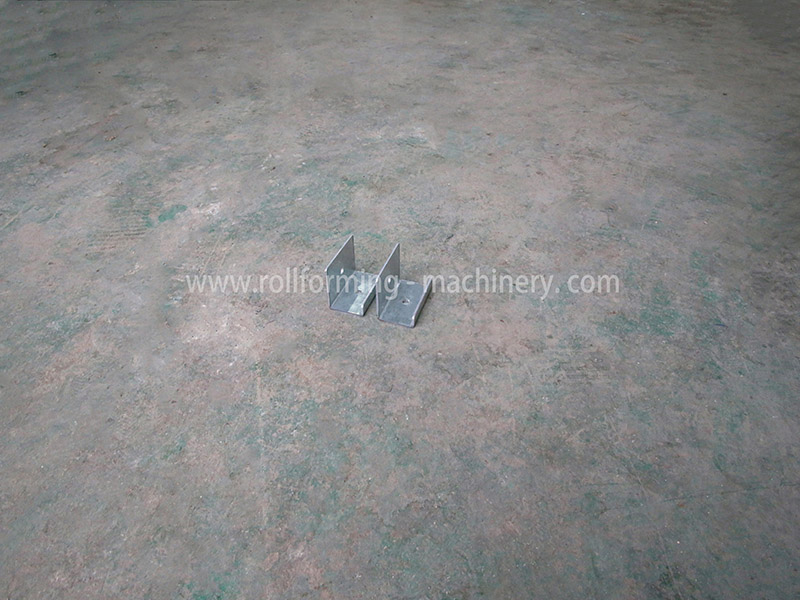

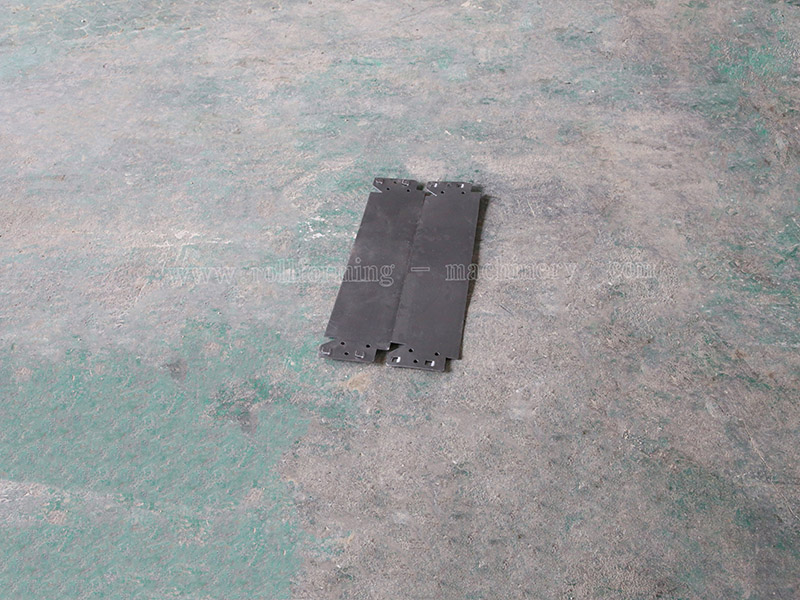

5)Product Show
