Metal Ceiling Plate Roll Forming Machine

Profile

Change Size By Spacer

Material

Material Thickness:0.3-0.6mm
Applicable Material:Colour Steel
With Yield Strength:Q235-345Mpa

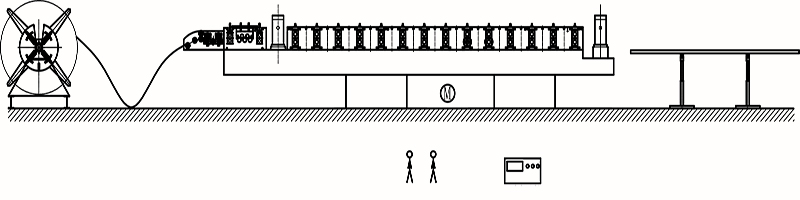

Work Follow

Decoiler→Feeding Guide Device→Hydraulic Pre-Punching Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack

Machine Components

1) Manual Decoiler: one set

Manual control steel coil inner bore shrinkage and stop
Max. feeding width:300mm
Coil ID Range:508±30mm
Max capacity:3 ton

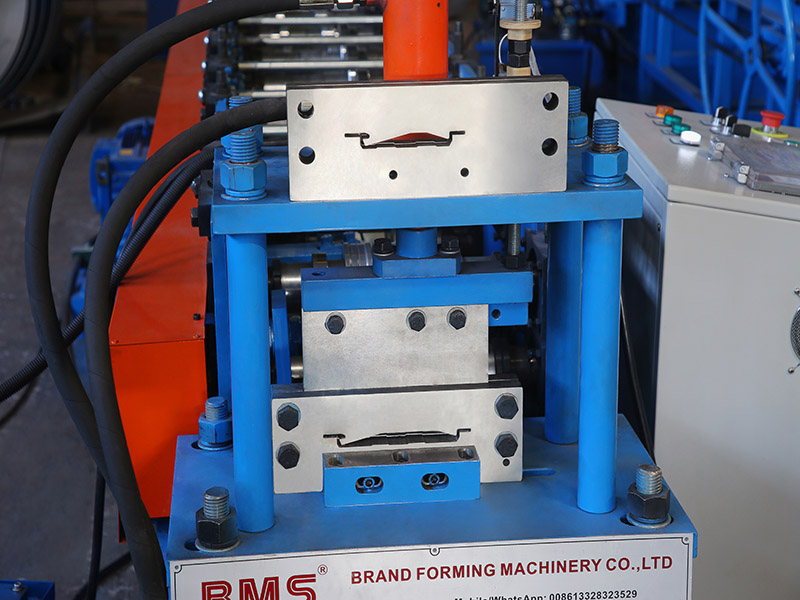

2) Feeding & Hydraulic Pre-Punching Device

With feeding material guide, body frame made from H400 type steel by welding
Pre-punching and post-cutting, use the same hydraulic system
Hydraulic motor:4KW, Hydraulic pressure range:16Mpa
Punching and Cutting tool material:mold steel Cr12MoV(=D2 steel, with one million times punching/cutting life), Heat treatment to HRC58-62 degree
1-cylinder hole punching system for punching on web

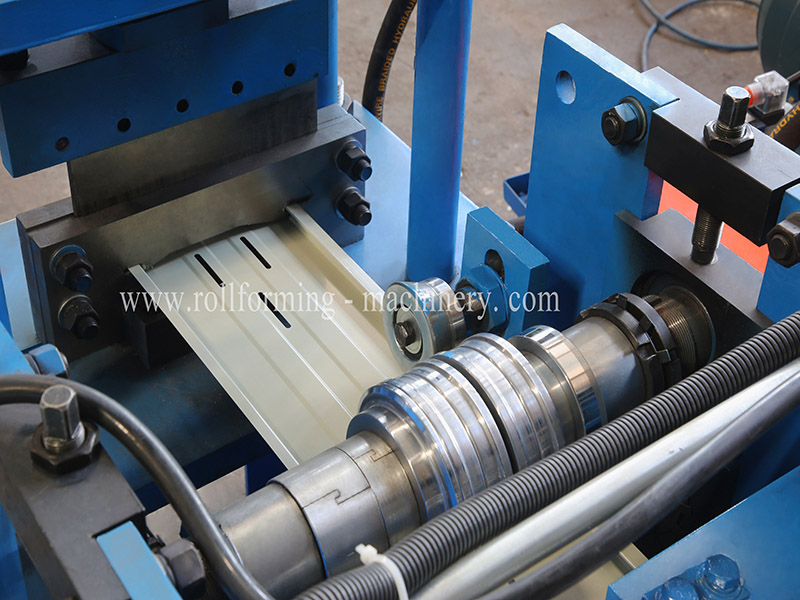

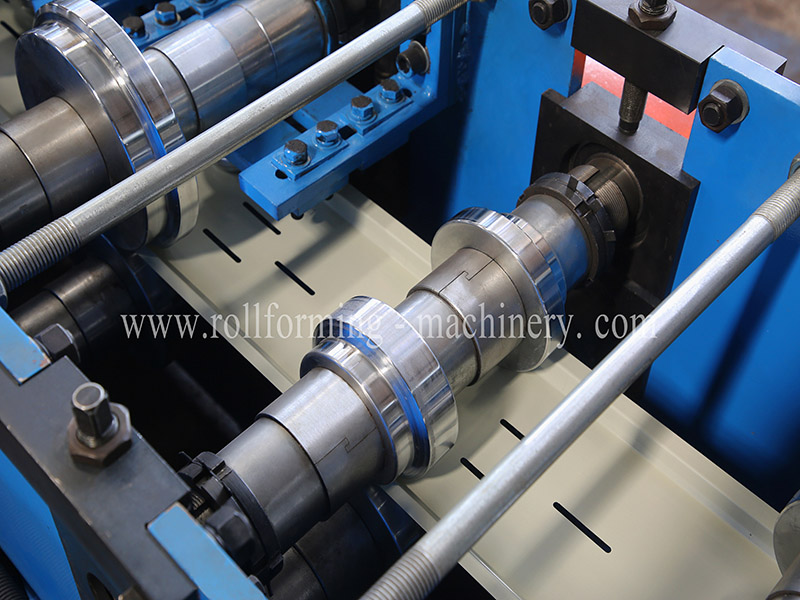

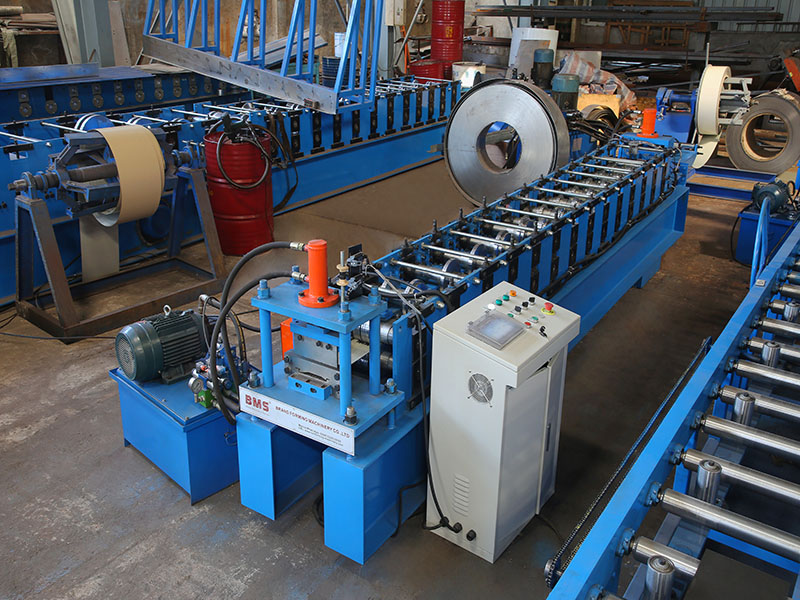

3) Main Machine

Body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф65,precision machined
Gear/Sprocket driving,about 14-step to form

Main Motor(Polaroid brand)=5.5KW, Frequency speed control

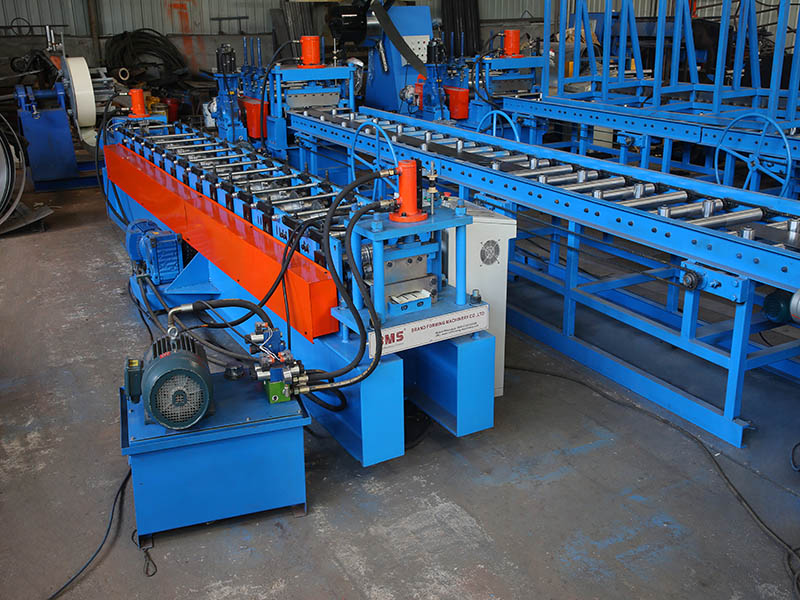

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:4KW,Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree

5)PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc

6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

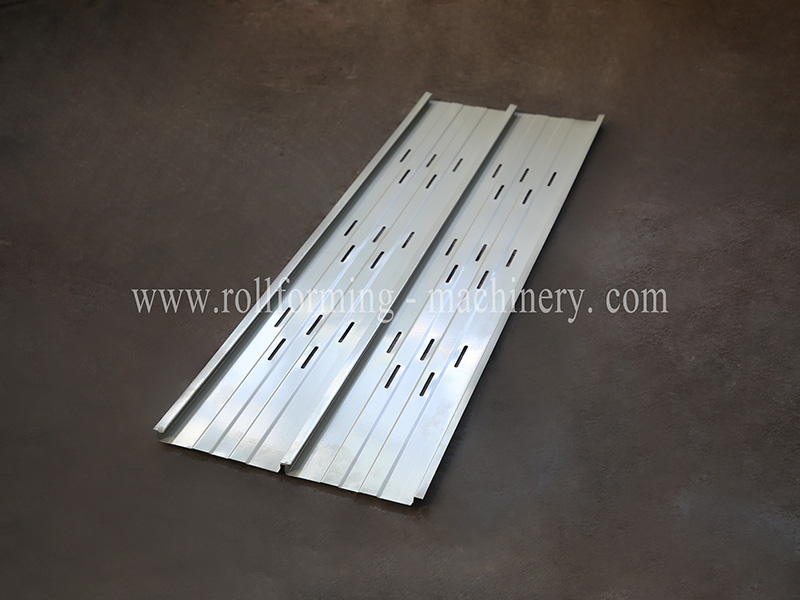

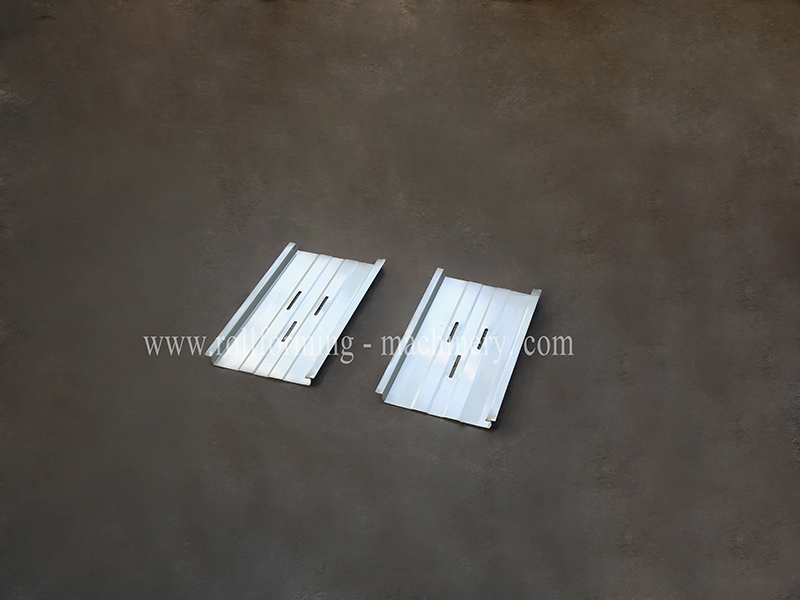

7)Product Show
